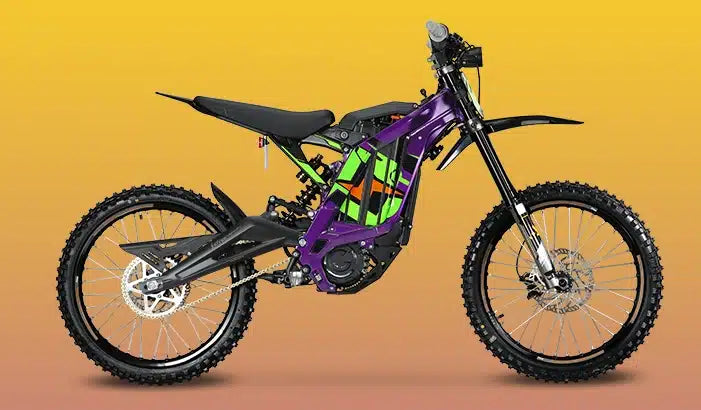

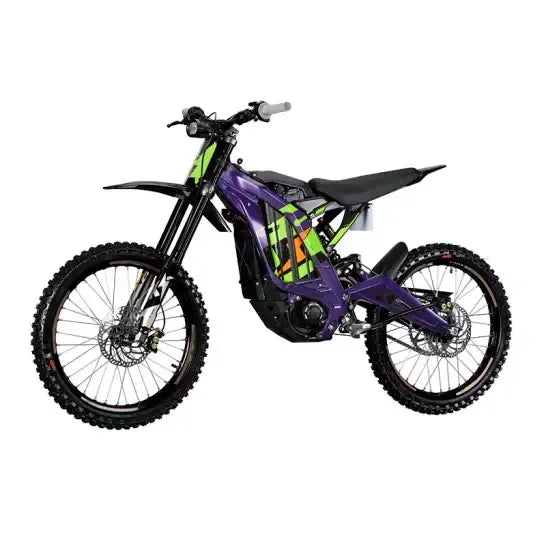

Introducing Surron Light Bee X V2 E-Bike. The 2024 Sur Ron Light Bee-X is known as the pinnacle of strength and versatility in the Electric Dirt Bike industry. With exhilarating speed and reliable power delivery, it provides an exciting ride whenever desired. Its sturdy brakes also offer precise control when needed. No longer will you have to make frequent stops for fuel - this bike outperforms gas-powered competitors, both on the road and on the track.
*NOTE: PRICES INCLUDE ASSEMBLY AND SETUP FEES FOR LOCAL PICK-UP. THIS PRICE INCLUDES A $200 SHIPPING CREDIT, AND THE SHIPPING CREDIT IS AUTOMATICALLY APPLIED AT CHECKOUT.
FOR QUESTIONS, CALL OR TEXT US 385-449-0632
Please review our Surron Purchase Policy
*New for 2024
- 6,000W peak power
- Top speed: 46.6 MPH
- 184 ft-lb (250 Nm) peak torque
- Range: 45 miles at cruising speed
- Simple & quick charging: connect to a standard wall outlet via the included charger. Charges to 100% in ~3 hours
- Easy to handle and maneuver: 56 kg (123 lb) curb weight, low 32.6" (830 mm) seat height
- Adjustable off-road suspension
- Regenerative braking
- 45-degree climbing angle

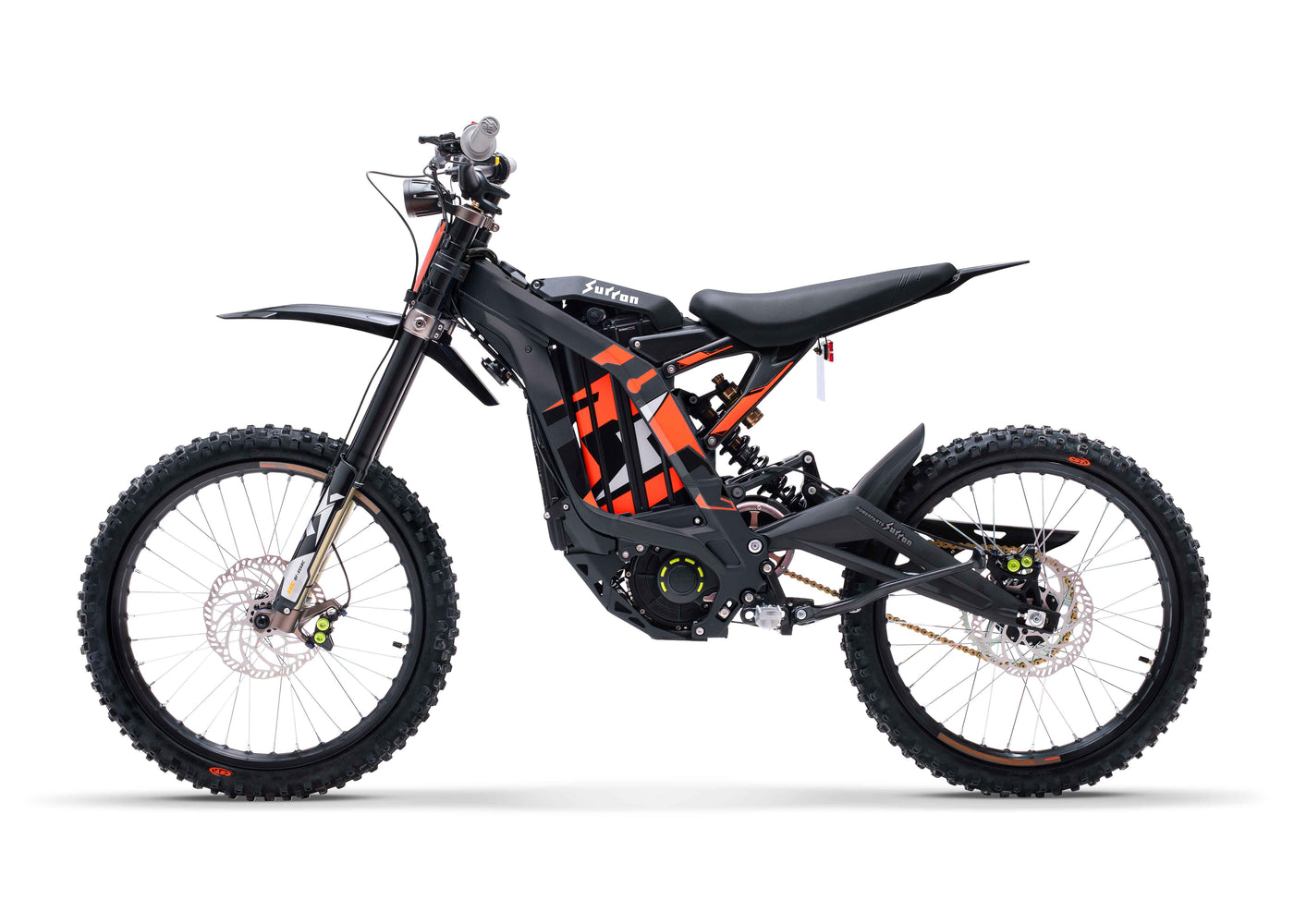

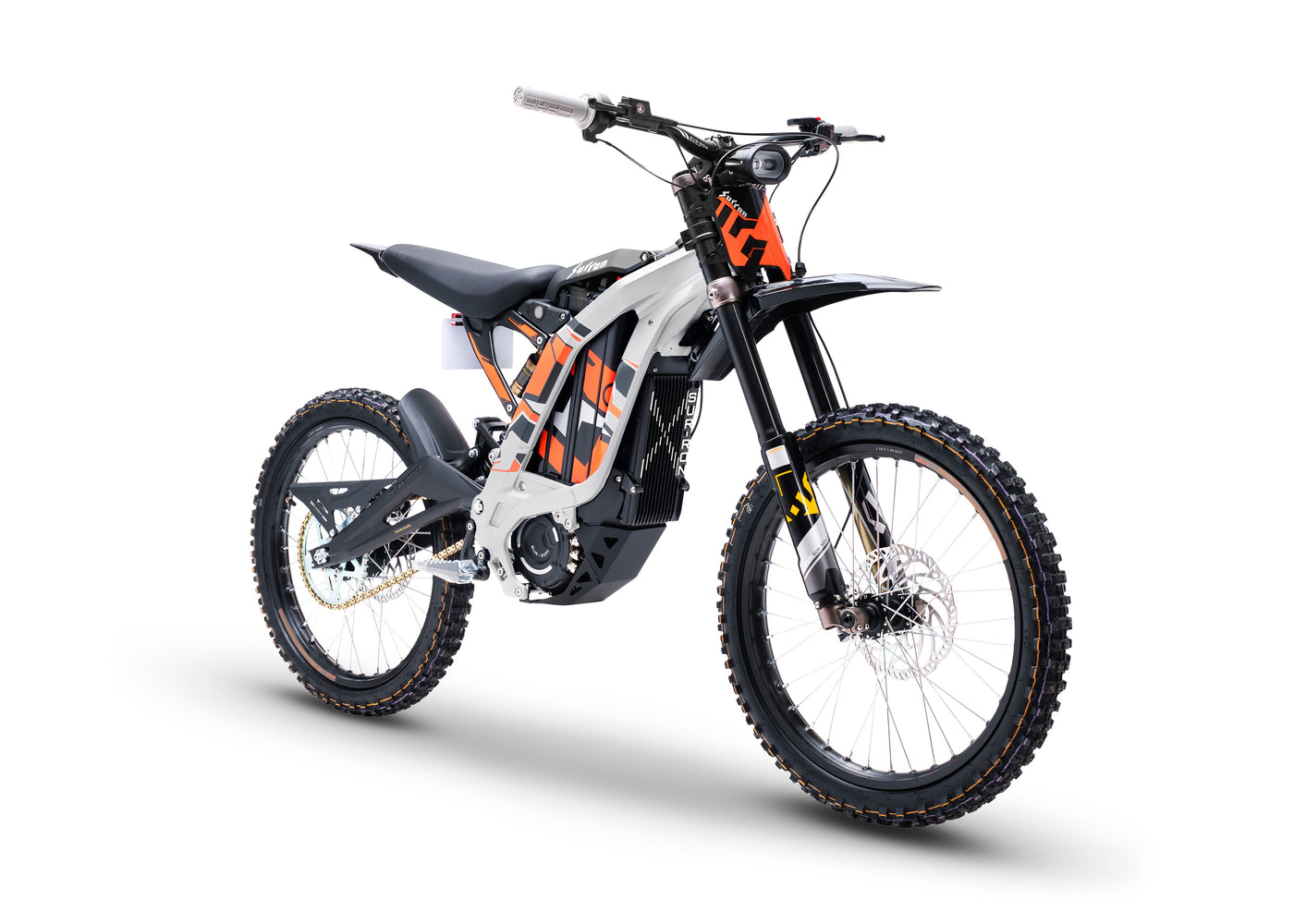

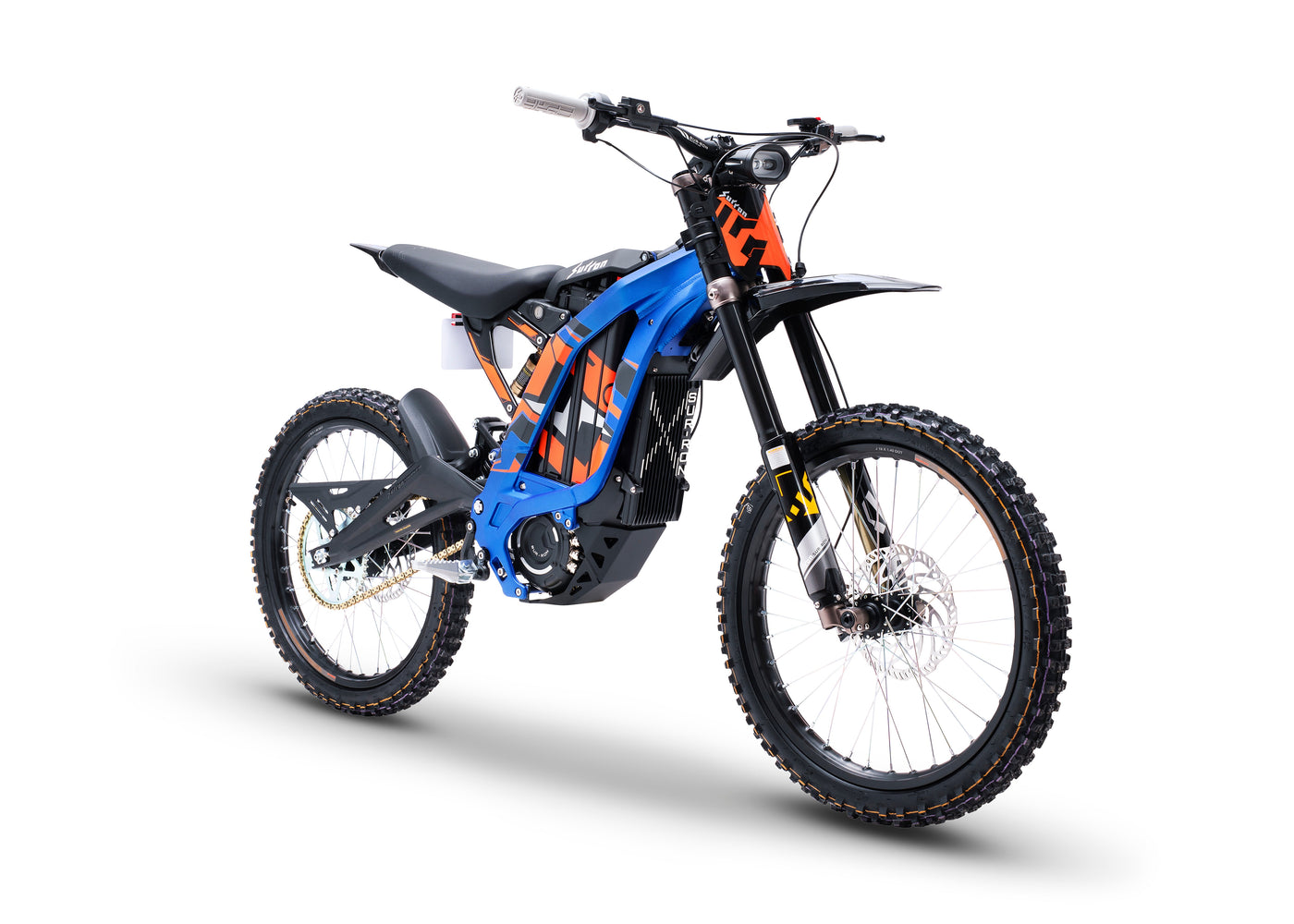

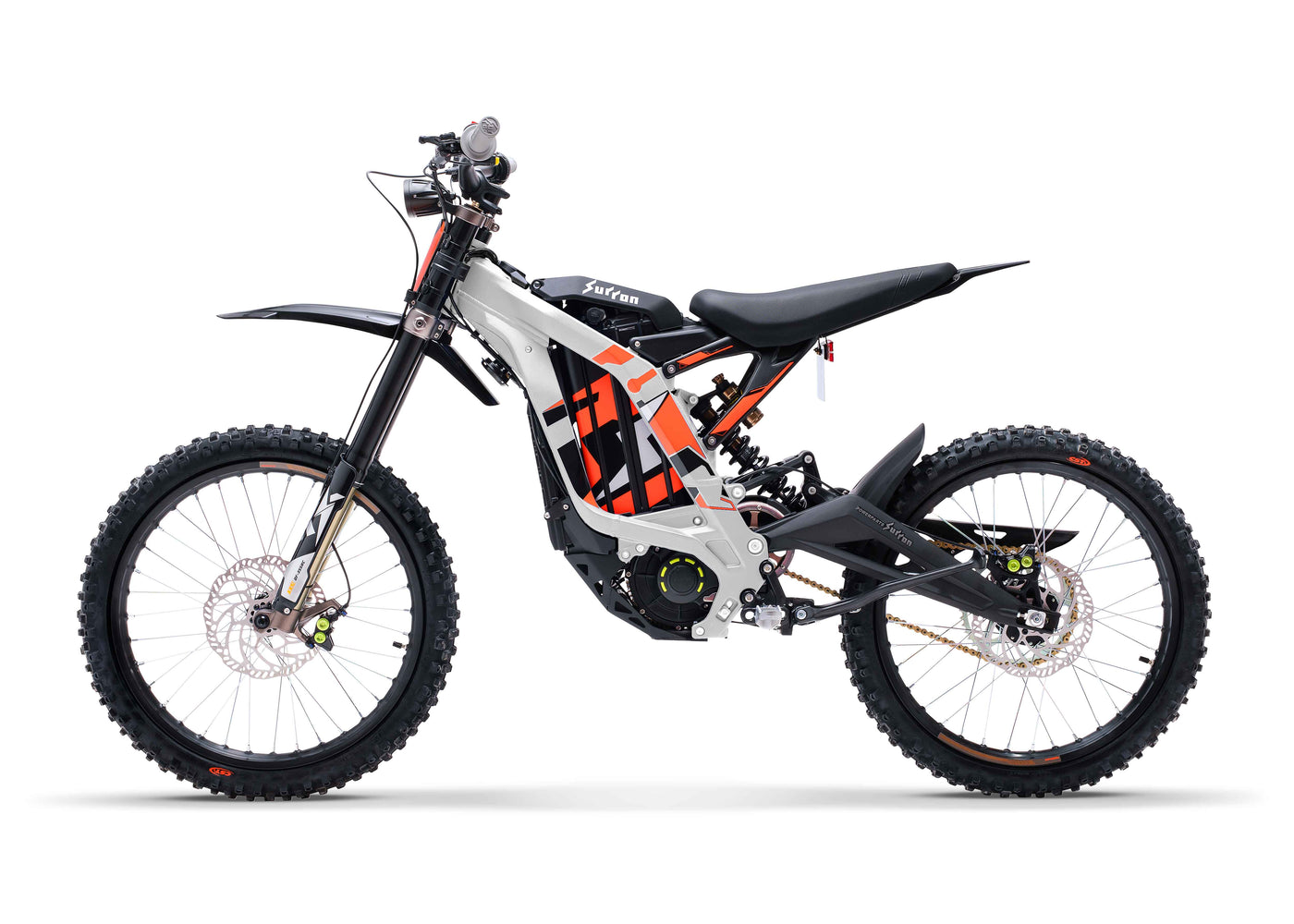

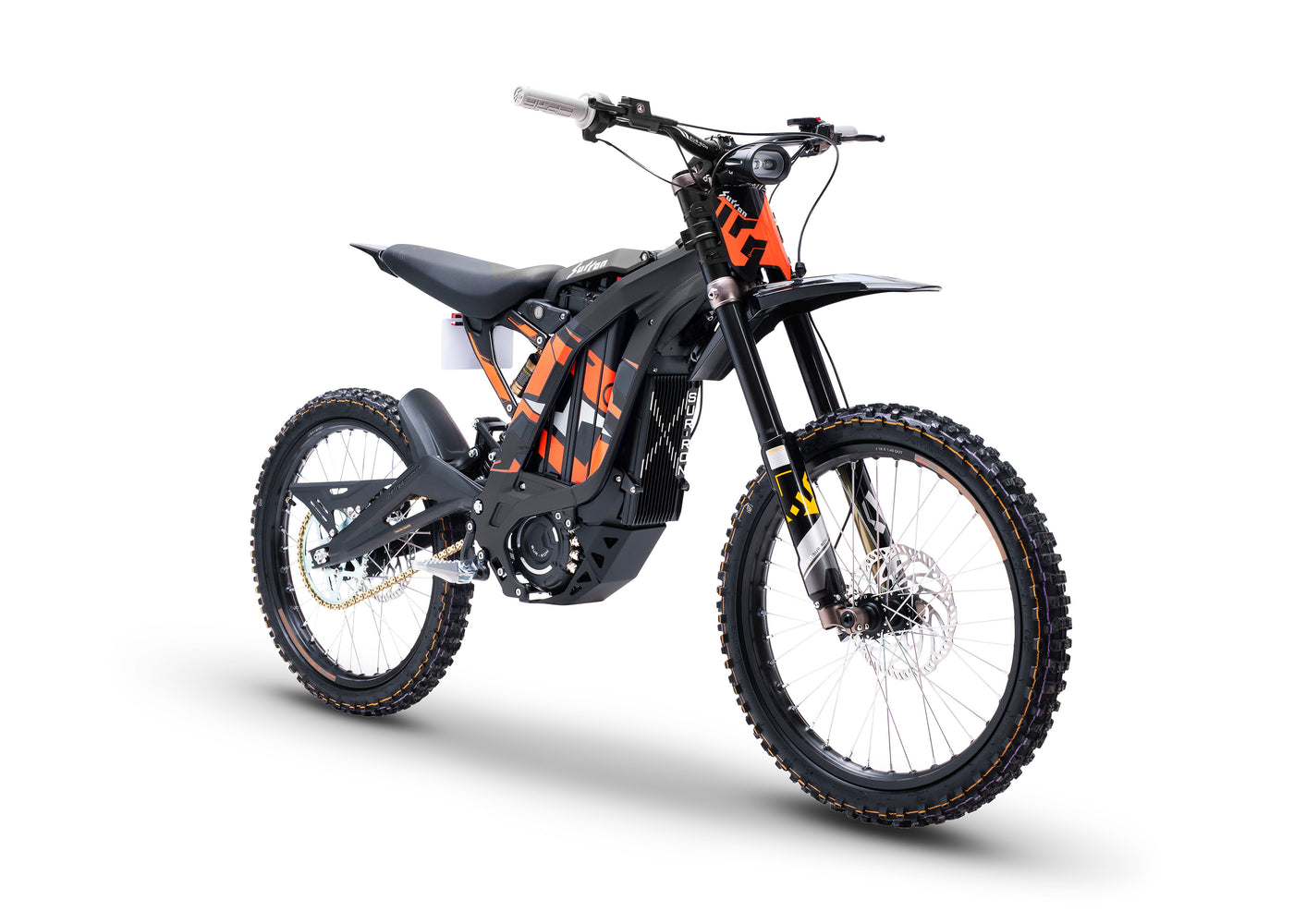

- Four color options (black, blue, silver) with optional orange graphics included
SPECS: The powertrain of the Surron Light Bee X features a robust 60V lithium-ion battery pack, an accurate FOC sine wave controller, and a PMSM motor capable of reaching a maximum speed of 5,400 rpm. This design is specifically engineered to withstand challenging riding environments worldwide, providing not only exceptional power but also exceptional safety and dependability on every journey.
- Weight: 120 lbs.
- Charge Time: 3.5 Hours
- Battery: 60v 40ah (huge 20% increase over the prior model's 31.4ah)
*Unless otherwise noted, ALL products sold from Sur Ron and authorized dealers are sold with the sole intention for off-road or race track use only. This product or products may not comply with some State, Federal, Provincial, and/or Local laws, ordinances, or regulations. The buyer takes full responsibility for the use of these products on their automobile which may or may not conform to all applicable laws and regulations for on-road or highway use.
| MOTOR |
| Motor Type: |
PMSM |
| Cooling Method: |
Air-Cooled |
| CONTROLLER |
| Controller Type: |
X Version Sine Wave |
| Power Modes: |
Eco and Sport |
| MOTOR POWER SYSTEM |
| Rated Voltage: |
60V (DC) |
| Rated Power / Peak Power: |
3,000W / 6,000W |
| CERTIFICATES |
| Road Legal: |
No |
| TRANSMISSION |
| Gear Ratio: |
1:7.6 |
| Transmission: |
Primary Belt & 420 Drive Chain |
| ELECTRICAL COMPONENTS |
| Battery: |
60V 40 Ah Lithium Battery |
| Battery Life: |
500 Cycles (reduces thereafter) |
| Battery Charge Indicator: |
Integrated LCD Display |
| Charger: |
10A |
| Charging Time: |
2.5-3.5 Hours |
| USB Connection: |
Single USB-2.1 A Socket |
| Speedometer: |
LCD Digital Speedometer |
| Headlight & Rear Light: |
LED |
| VEHICLE |
| Chassis & Swingarm: |
Forged Aluminum |
| Front Suspension: |
KKE Telescopic Fork, Adjustable for Preload & Rebound |
| Rear Shock Absorber: |
KKE with TR Intersect Link-type Suspension, Adjustable for Compression & Rebound |
| Wheel Type & Size: |
19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs |
| Tire Size: |
70/100-19 Front/Rear |
| Max Range: |
75 km @ 40 km/h, depending upon terrain |
| Net Weight: |
56 kg |
| Max Recommended Load: |
100 kg |
| Max Climbing Angle: |
45 degrees |
| Rear Sprocket: |
48T |
| Vehicle Dimensions: |
1,870mm x 780mm x 1,040mm |
| Minimum Ground Clearance: |
270mm |
| Wheelbase: |
1,260mm |
| Seat Height: |
830 mm |
